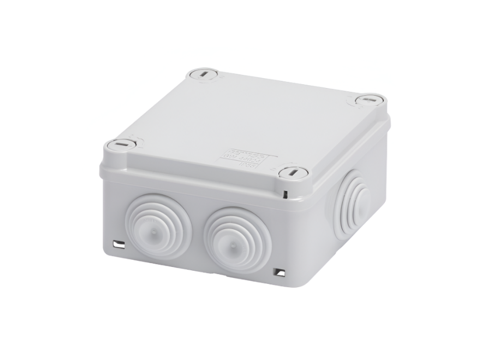

44 CE series watertight junction boxes complying with international standards IEC 60670-1 and IEC 60670-22) and using high-performance plastic materials. The range consists of boxes with IP44, IP55, IP56 protection rating, equipped with direct entry or smooth-faced cable glands and different types of cover: plain/transparent, top/bottom, clip-on/screw-on. Available in different self-extinguishing materials, glow wire test up to 960°C. For common derivations, special applications and industrial uses
| Insulation class |
II (according to IEC 61140 standard) |
| Color |
Grey RAL 7035 |
| Protection index |
IP55 |
| Material |
Technopolymere GWPLAST 75 |
| Impact resistance |
IK08 |
| Internal dimensions LxHxP (mm) |
100x100x50 |
| Entrances No. of holes / Ø |
6/29 |
| Application |
Common branches |
| Incandescent wire test |
650 °C |
| Cover |
Clip-on base |
| Operating temperature |
-25 +60 °C |
| Material characteristics |
Halogen-free according to EN 60754-2 standard |
| Electrocod |
02210 |
| Thermopressure with ball |
85 °C |
| Wall-mounted |
With direct entry grommets |
| Accessories to restore insulation |
GW44622 |
| Cover screws (number/type) |
4 1/4 turn insulators, sealable |
| Screw tightening torque |
1 newton/metre |
